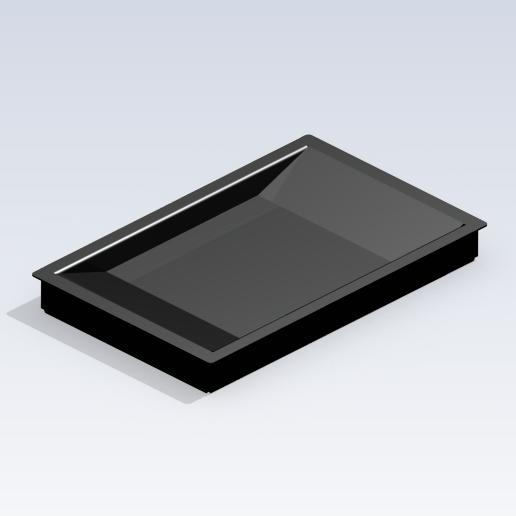

Pass-Through P7041
This very shallow pass-through is designed for simple documentation and payment transactions.
It is used in reception counters as well as in banks, payment offices, and general cash desks. The pass-through height of 30 mm is sufficiently measured for Euro coin rolls.
Construction and Execution
The shallow pass-through is made from durable, impact-resistant plastic and coated with an extremely abrasion-resistant black textured finish. The housing of the pass-through is made from stable, galvanized steel sheet.

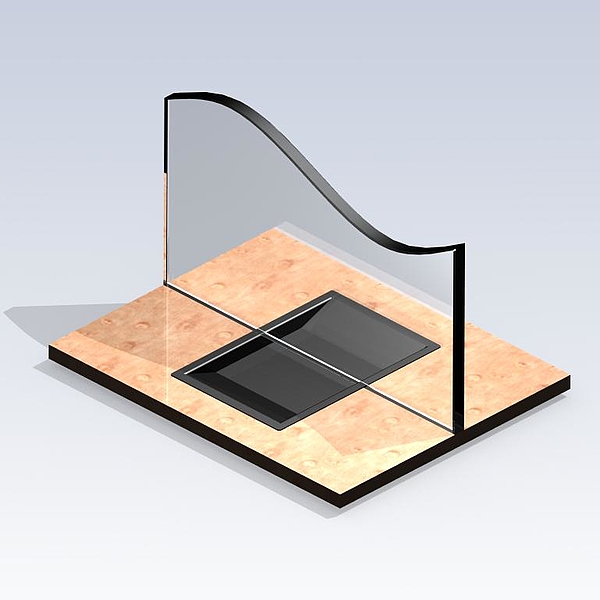

Installation
The pas-through is installed from above into the prepared cutout of the panel, with the surrounding edge covering the cut edges. The 1.5 mm thick cover edge can also be milled into the counter for flush installation.
Using the included clamping brackets, the pass-through is invisibly and firmly tensioned from below in the countertop.
The possibility of later disassembly for maintenance or repair work must be ensured.
Intercom System
We recommend using our Delta 2.0 intercom system to ensure friendly communication between the operator and the visitor.
APPLICATION AREAS
Late shift counters, cash, security, reception systems, ticket and fare sales
INSTALLATION
Indoor areas, counter installation – centrally under glazing
External dimensions
P7041 RAL 9005: W x H x D = 282 x 70 x 440 mm
P7041 Stainless Steel: W x H x D = 282 x 70 x 440 mm
Pass-through size
P7041 RAL 9005: W x H = 220 mm x 30 mm
P7041 Stainless Steel: W x H = 242 x 30 mm
Execution
RAL 9005 jet black, textured finish or stainless steel
