Pass-Through P7042
This very flat and wide pass-through has been designed for simple documentation and payment transactions. The transfer height for document submission is 15 mm.
Safety
The pass-through P7042 is constructed and manufactured in accordance with the guidelines of BGV C9 (formerly UVV-Cash Registers).
Construction and Execution
The flat pass-trough is made of durable plastic and features an extremely abrasion-resistant black textured coating (RAL 9005, jet black). The base plate is made of 2.0 mm thick galvanized steel sheet.
Installation
The base plate of the tray is screwed from above to the site-specific frame construction. Subsequently, the tray is placed on top of the base plate and screwed from below.
The possibility of later disassembly for repairs or replacement must be ensured.
Intercom
We recommend using our Delta 2.0 hands-free intercom to ensure customer-friendly communication between the operator and the visitor.
APPLICATION AREAS
Late check-in, cash desks, doorman positions, reception areas, ticket sales
INSTALLATION

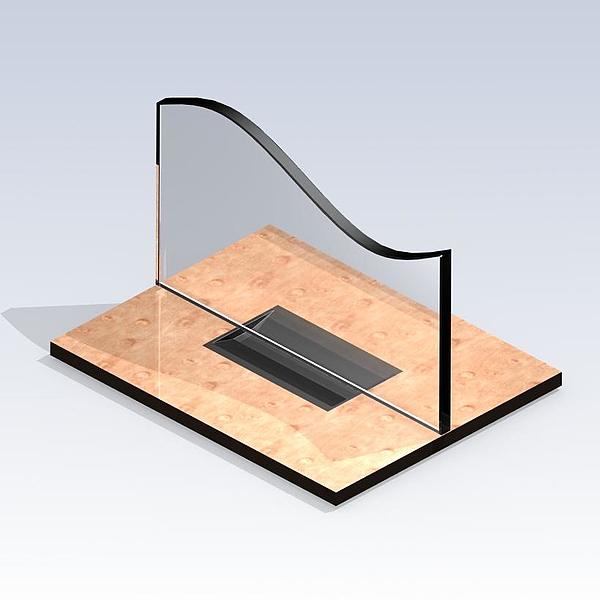

Indoor area, counter installation – centrally under glazing
External dimensions
P7042 RAL 9005: W x H x D = 330 x 25 x 218 mm
P7042 Stainless Steel: W x H x D = 330 x 53 x 218 mm
Transfer size
P7042 RAL 9005: W x H = 300 x 15 mm
P7042 Stainless Steel: W x H = 290 x 15 mm
Design
RAL 9005 jet black, textured coated or stainless steel
